Lopi • Lopi Fireplace Inserts

Radiant Plus Medium MV

Propane Fireplace Insert

Designer Black face

About the Radiant Plus Medium MV

The Radiant Plus Medium MV gas insert provides comforting radiant heat plus natural convection to living spaces up to 1,250 square feet, featuring a 309 square inch ceramic glass fireview. This Millivolt model uses a continuous pilot that operates without electricity for reliable performance at an excellent value. It delivers a beautiful Dancing-Fyre display and fits most metal and masonry fireplaces.

Specifications

Heating Area: Up to 1,250 sq ft
BTU Output: 13,000 to 25,000 BTU/hr (NG and LP)
Efficiency: 86.98% (NG) / 89.03% (LP), steady state
Dimensions (H x W x D): 19.5 in x 26.5 in x 14.875 in
AFUE: 80.3% (NG) / 79.5% (LP)
Glass Viewing Area: 309 sq in, ceramic glass
Convection Fan: Optional, 100 CFM
Venting: Direct vent: 3 in exhaust and 3 in intake liners up the existing chimney (7 in minimum flue)
Fits: Masonry or factory-built (metal) wood-burning fireplaces
Minimum Fireplace Opening: 19.75 in H x 27 in W x 15 in D, 17.25 in wide at the back (13.75 in D with the panel trim)

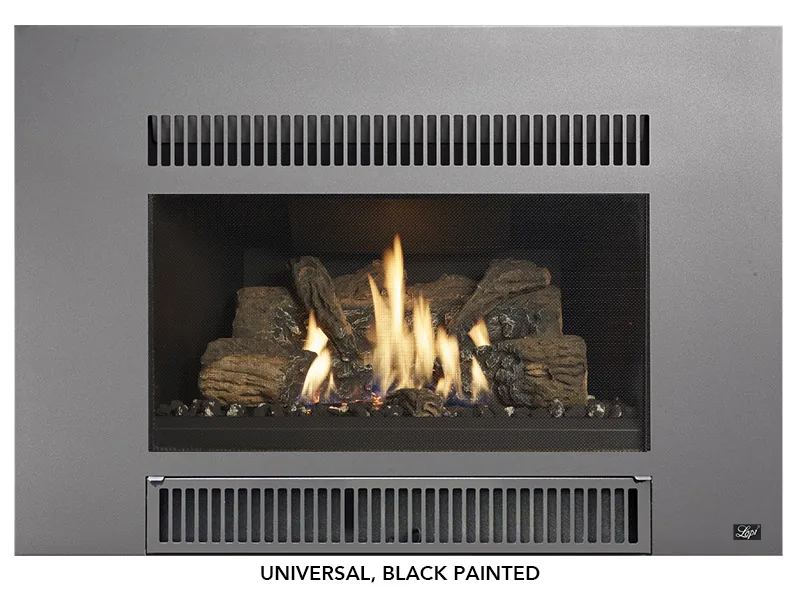

Surround Panels: Optional: Small 38 x 25 in or Large 40 x 28.5 in (W x H); not needed with the Universal face
Hearth: Hearth extension not required (1.25 in with the panel trim)
Electrical: Not needed to run the insert; optional blower 120 V, 0.55 A max
Installation: Bedroom and mobile home approved

Manuals & Documents

Manufacturer documents from Travis Industries. Each opens in a new tab.
