Radiant Plus Large MV

Propane Fireplace Insert

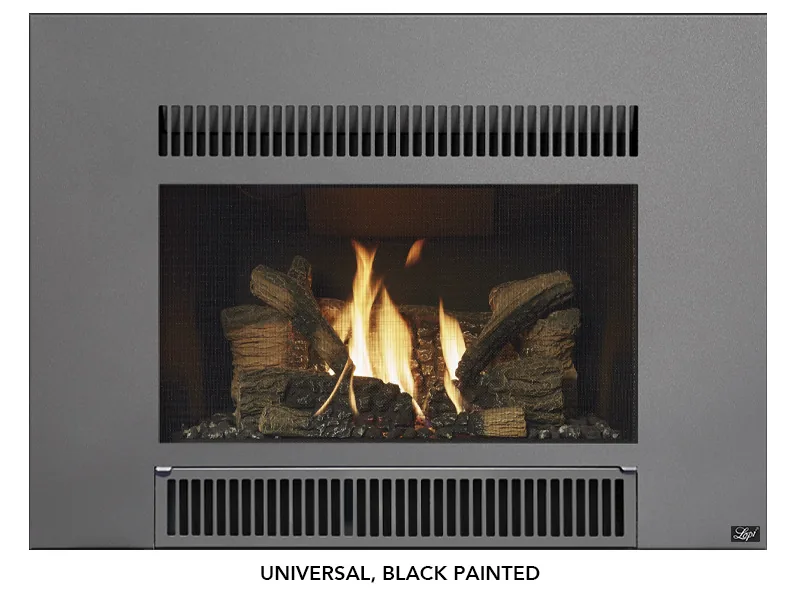

Times Square face

About the Radiant Plus Large MV

The Radiant Plus Large MV gas insert provides comforting radiant heat plus natural convection to living spaces up to 1,650 square feet, showcasing the biggest fire viewing area in its class at 452 square inches. This Millivolt model operates via a continuous pilot system requiring no electricity, ideal for reliable performance independent of power. It delivers a realistic Dancing-Fyre display.

Specifications

Heating Area: Up to 1,650 sq ft
BTU Output: 17,000 to 33,000 BTU/hr (NG) / 15,500 to 31,000 BTU/hr (LP)
Efficiency: 87.81% (NG) / 87.94% (LP), steady state
Dimensions (H x W x D): 23.5 in x 30.25 in x 14.875 in
AFUE: 79.4% (NG) / 81.1% (LP)
Glass Viewing Area: 452 sq in, ceramic glass
Convection Fan: Optional, 100 CFM
Venting: Direct vent: 3 in exhaust and 3 in intake liners up the existing chimney (7 in minimum flue)
Fits: Masonry or factory-built (metal) wood-burning fireplaces
Minimum Fireplace Opening: 23.75 in H x 31 in W x 15 in D, 21.25 in wide at the back (13.75 in D with the panel trim)
Surround Panels: Optional: Small 42 x 30.5 in or Large 44 x 34 in (W x H); not needed with the Universal face
Hearth: Hearth extension not required (1.25 in with the panel trim)
Electrical: Not needed to run the insert; optional blower 120 V, 0.55 A max
Installation: Bedroom and mobile home approved
