Radiant Plus Large GSB

Propane Fireplace Insert

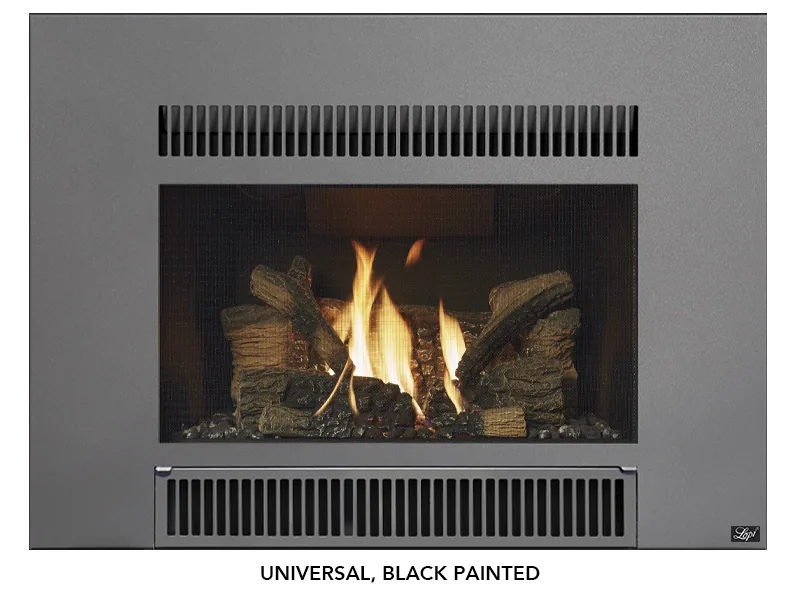

Designer Black face

About the Radiant Plus Large GSB

The Radiant Plus Large GSB gas insert provides comforting radiant heat plus natural convection to living spaces up to 1,650 square feet, with the biggest fire viewing area in its class at 452 square inches. The GreenSmart Basic control conserves fuel with on-demand ignition that lights when heat is called for and shuts off when not needed. It delivers a realistic Dancing-Fyre display and keeps running on battery backup during a power outage.

Specifications

Heating Area: Up to 1,650 sq ft
BTU Output: 17,000 to 33,000 BTU/hr (NG) / 15,500 to 31,000 BTU/hr (LP)
Efficiency: 87.81% (NG) / 89.94% (LP), steady state
Dimensions (H x W x D): 23.5 in x 30.25 in x 14.875 in
AFUE: 79.4% (NG) / 81.1% (LP)
Glass Viewing Area: 452 sq in, ceramic glass
Convection Fan: Optional, 100 CFM
Venting: Direct vent: 3 in exhaust and 3 in intake liners up the existing chimney (7 in minimum flue)
Fits: Masonry or factory-built (metal) wood-burning fireplaces
Minimum Fireplace Opening: 23.75 in H x 31 in W x 15 in D, 21.25 in wide at the back (13.75 in D with the panel trim)
Surround Panels: Optional: Small 42 x 30.5 in or Large 44 x 34 in (W x H); not needed with the Universal face
Hearth: Hearth extension not required (1.25 in with the panel trim)
Electrical: 120 V outlet with AA battery backup for power outages; optional blower 120 V, 0.55 A max
Installation: Bedroom and mobile home approved
