Medium Flush Wood Rectangular
Times Square face
About the Medium Flush Wood Rectangular

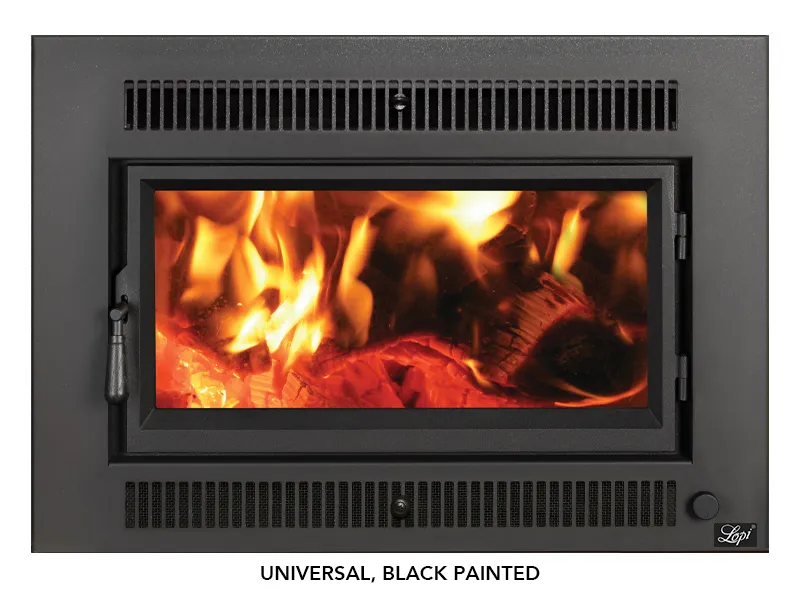

The Medium Flush Wood NexGen-Hybrid Rectangular features a clean-lined rectangular door with concealed convection fans and a large fire-viewing area. NexGen-Hybrid technology delivers cleaner, longer burns from a 2.2 cubic foot firebox that holds logs up to 24 inches. Choose from rectangular face options including the Times Square, Shadowbox, Universal, and Rectangular Bevel. The optional GreenStart igniter enables push-button fire starting with the door closed.
Specifications
- Heating Area
- Up to 2,000 sq ft
- BTU Output
- 11,076 to 39,456 BTU/hr (EPA test) / 14,500 to 70,000 BTU/hr (cord wood)
- Efficiency
- 77% (HHV)
- Emissions
- 1.2 g/hr
- Max Log Length
- 24 in
- Dimensions (H x W x D)
- 21.5 in x 28.875 in x 19 in
- Weight
- 450 lbs
- Glass Viewing Area
- 227 sq in (22.625 in W x 10 in H)
- Firebox
- 2.2 cu ft
- Maximum Burn Time
- Up to 12 hours
- Convection Fan
- 180 CFM, standard (twin blowers)
- Flue
- 6 in, full-height stainless steel liner required
- Fits
- Masonry fireplaces only
- Minimum Fireplace Opening
- 21.75 in H x 30.875 in W x 19.125 in D (back: 20 in H x 19.125 in W); 36.875 in W, measured 3 in back, with the GreenStart igniter; 17.875 in D with panel trim
- Surround Panels
- 42 x 30.5 in or 44 x 34 in
- Hearth
- Non-combustible, at least 16 in deep (17.25 in with panel trim) and 40.875 in wide (US)
- Electrical
- 115 V, 1.8 A (blowers); 9.8 A with the optional GreenStart igniter
Manuals & Documents
Manufacturer documents from Travis Industries. Each opens in a new tab.
Base price
$4,997
As configured
$7,458
Does not include tax, delivery, or installation. Electrical, structural, or venting work may be required. Contact us for a complete quote.
