Lopi • Lopi Fireplace Inserts
Large Flush Wood Arch
Wood Fireplace Insert
About the Large Flush Wood Arch

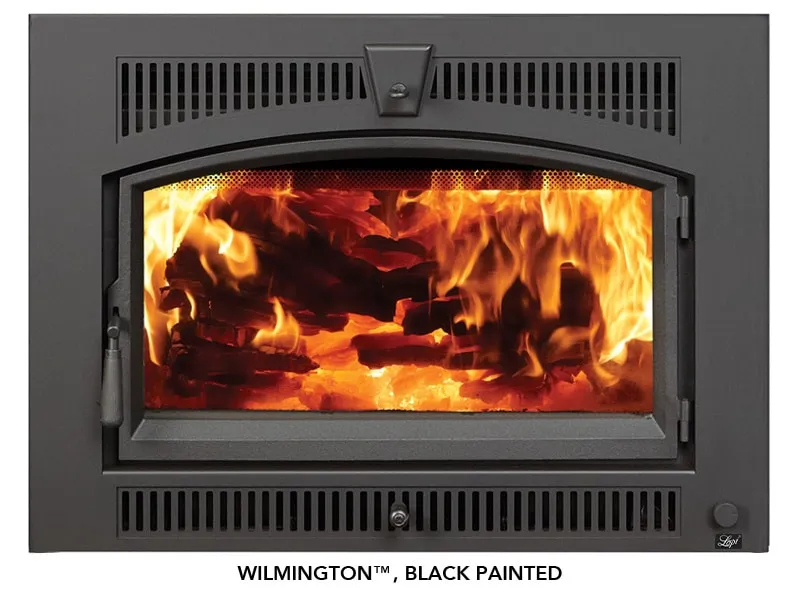

The Large Flush Wood NexGen-Hybrid Arch features a classic arched door with concealed convection fans and an extra-large fire-viewing area. NexGen-Hybrid technology delivers cleaner, longer burns from a large firebox that holds logs up to 24 inches. Choose from the Wilmington and Arch Black arch-style faces. The optional GreenStart igniter enables push-button fire starting with the door closed.
Specifications
- Heating Area
- Up to 2,500 sq ft
- BTU Output
- 11,162 to 39,875 BTU/hr (EPA test) / 18,000 to 67,000 BTU/hr (cord wood)
- Efficiency
- 77.8% (HHV)
- Emissions
- 0.8 g/hr
- Max Log Length
- 24 in
- Dimensions (H x W x D)
- 23.5 in x 31 in x 19 in
- Weight
- 530 lbs
- Glass Viewing Area
- 307 sq in (24.5 in W x 13 in H)
- Firebox
- 2.7 cu ft
- Maximum Burn Time
- Up to 14 hours
- Convection Fan
- 180 CFM, standard (twin blowers)
- Flue
- 6 in, full-height stainless steel liner required
- Fits
- Masonry fireplaces only
- Minimum Fireplace Opening
- 23.75 in H x 33 in W x 19.125 in D (back: 22.25 in H x 21 in W); 40 in W, measured 3 in back, with the GreenStart igniter
- Surround Panels
- 42 x 32.5 in or 47 x 35 in
- Hearth
- Non-combustible, at least 47 in wide; 16 in deep with the insert base 2 in above a combustible floor, up to 20 in if level with it (US)
- Electrical
- 115 V, 1.8 A (blowers); 9.8 A with the optional GreenStart igniter
Manuals & Documents
Manufacturer documents from Travis Industries. Each opens in a new tab.
Base price
$5,253
As configured
$7,894
Does not include tax, delivery, or installation. Electrical, structural, or venting work may be required. Contact us for a complete quote.
