Fireplace Xtrordinair • FPX ZC Gas Fireplaces

864 TV 40K Clean Face Deluxe GSR2 II

Propane ZC Fireplace

About the 864 TV 40K Clean Face Deluxe GSR2 II

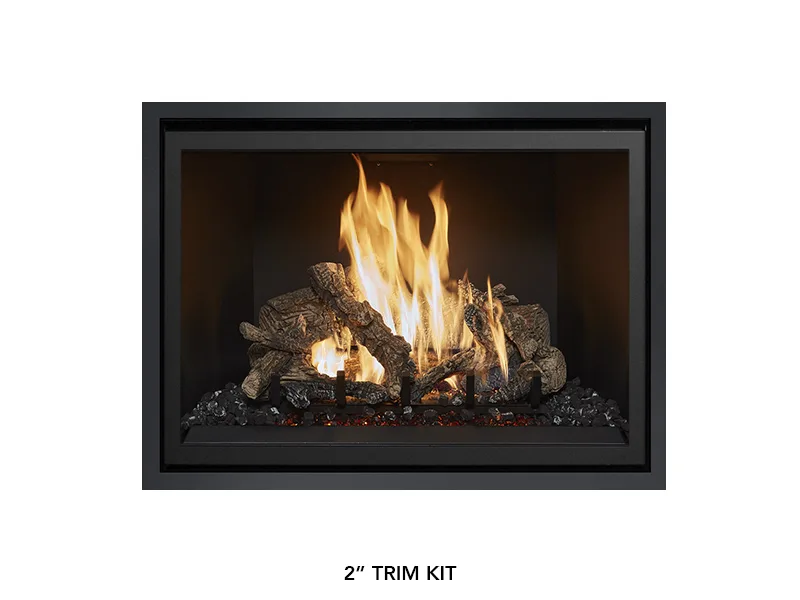

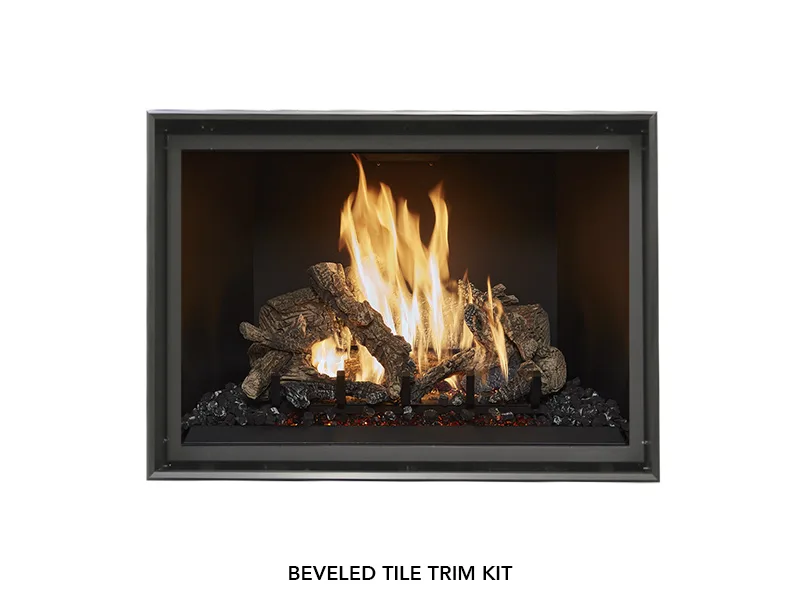

The 864 TV 40K Clean Face combines 40,000 BTU high-output heat with a frameless fire view and ceramic glass. Top-vent only with GreenSmart 2 Remote, accent lighting, and 180 CFM fan. Optional tile trim kits for a seamless surround.

Specifications

Heating Area: Up to 2,000 sq ft (NG) / 1,850 sq ft (LP)
BTU Output: 14,000 to 40,000 BTU/hr (NG) / 10,500 to 36,500 BTU/hr (LP)
Dimensions (H x W x D): 44.75 in x 42.75 in x 22 in
Weight: 205 lbs
Convection Fan: 180 CFM, standard
Venting: 8 in direct vent, top only; vertical terminations may reduce to 6-5/8 in
Minimum Framing: 45 in H x 43 in W x 22 in D (22.5 in D with submerged facing)
Hearth or Hearth Pad: Not required
Electrical: 120 V, 60 Hz, typical max 5 A (blower 1.5 A)
Installation: Bedroom and mobile home approved; straight or corner placement; covered outdoor installation allowed

Manuals & Documents

Manufacturer documents from Travis Industries. Each opens in a new tab.
