Fireplace Xtrordinair • FPX ZC Gas Fireplaces
864 TRV 31K Clean Face Deluxe GSR2
Propane ZC Fireplace
About the 864 TRV 31K Clean Face Deluxe GSR2

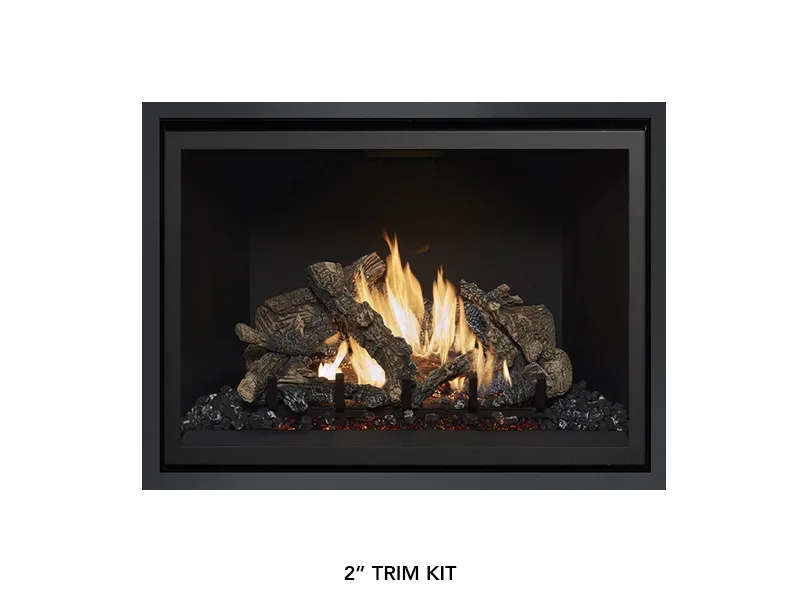

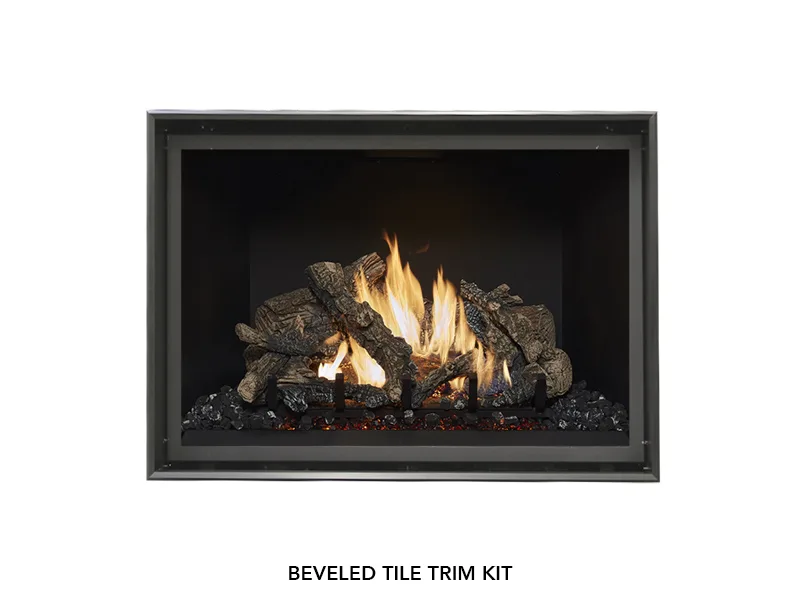

The 864 TRV 31K Clean Face provides a frameless, edge-to-edge fire view in a large-format chassis. 31,000 BTU with top or rear vent installation. Includes GreenSmart 2 Remote, accent lighting, and 180 CFM fan. Optional tile trim kits for a seamless surround.
Specifications
- Heating Area
- Up to 1,400 sq ft
- BTU Output
- 10,000 to 31,000 BTU/hr (NG) / 8,000 to 31,000 BTU/hr (LP)
- Efficiency
- 80.38% (NG) / 81.21% (LP), steady state
- Dimensions (H x W x D)
- 44.75 in x 42.75 in x 22 in
- Weight
- 205 lbs
- AFUE
- 73.80% (NG) / 73.50% (LP)
- Glass Viewing Area
- 758.8 sq in, tempered glass
- Convection Fan
- 180 CFM, standard
- Venting
- 8 in direct vent, top or rear; top vent may reduce to 6-5/8 in
- Minimum Framing
- 45 in H x 43 in W x 22 in D (22.5 in D with submerged facing)
- Hearth or Hearth Pad
- Not required
- Electrical
- 120 V, 60 Hz, typical max 5 A (blower 1.5 A)
- Installation
- Bedroom and mobile home approved; straight or corner placement
Manuals & Documents
- Owner's Manual PDF, 6.2 MB
- Installation Manual PDF, 14 MB
- Spec Sheet PDF, 3.7 MB
- Brochure PDF, 4.8 MB
Manufacturer documents from Travis Industries. Each opens in a new tab.
Base price
$5,448
As configured
$5,943
Does not include tax, delivery, or installation. Electrical, structural, or venting work may be required. Contact us for a complete quote.
