Fireplace Xtrordinair • FPX ZC Gas Fireplaces
564 TV 35K Clean Face Deluxe GSR2
Propane ZC Fireplace
About the 564 TV 35K Clean Face Deluxe GSR2

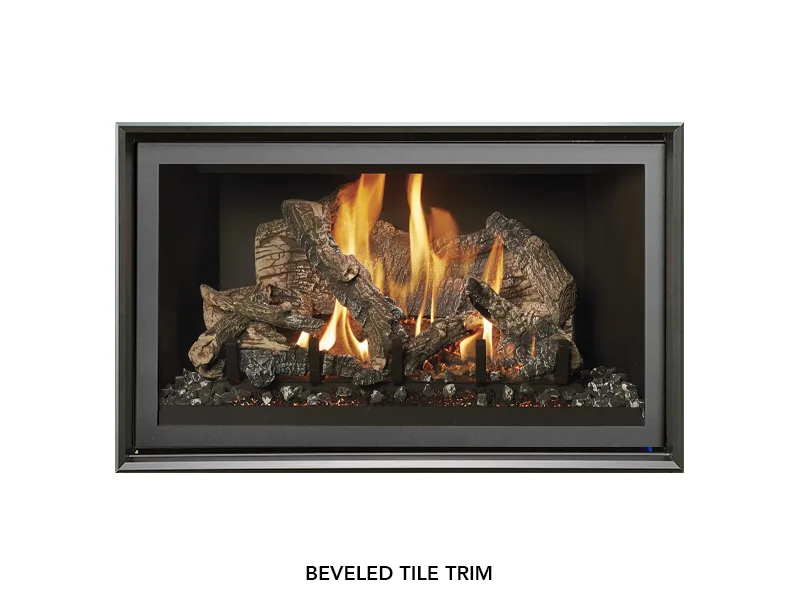

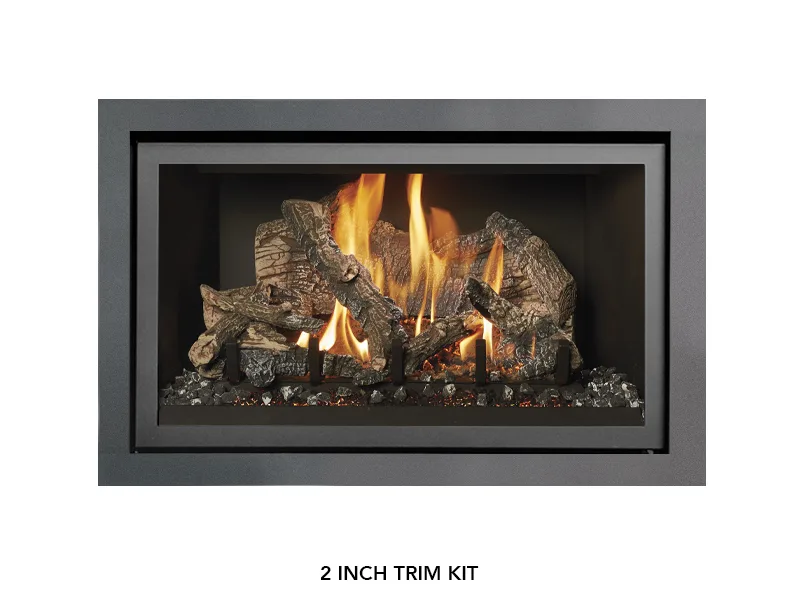

The 564 TV 35K Clean Face combines 35,000 BTU output with a frameless fire view and ceramic glass. Top-vent configuration with GreenSmart 2 Remote, accent lighting, and 180 CFM fan. Optional tile trim kits for a custom finish.
Specifications
- Heating Area
- Up to 1,700 sq ft
- BTU Output
- 12,000 to 35,000 BTU/hr (NG) / 7,500 to 35,000 BTU/hr (LP)
- Efficiency
- 82.77% (NG) / 84.36% (LP), steady state
- Dimensions (H x W x D)
- 37 in x 38.25 in x 19.125 in
- Weight
- 165 lbs
- AFUE
- 79.00% (NG) / 79.80% (LP)
- Glass Viewing Area
- 479.8 sq in, ceramic glass
- Convection Fan
- 180 CFM, standard
- Venting
- 8 in direct vent, top only; vertical terminations reduce to 6-5/8 in
- Minimum Framing
- 37.25 in H x 38.75 in W x 19.375 in D (18.875 in D for extended, tile-over install)
- Hearth or Hearth Pad
- Not required
- Electrical
- 120 V, 60 Hz, 2 A supply (blower 1.5 A)
- Installation
- Bedroom and mobile home approved; straight or corner placement; covered outdoor installation allowed
Manuals & Documents
- Owner's Manual PDF, 8.4 MB
- Installation Manual PDF, 14 MB
- Spec Sheet PDF, 1.7 MB
- Brochure PDF, 0.9 MB
Manufacturer documents from Travis Industries. Each opens in a new tab.
Base price
$5,241
As configured
$5,712
Does not include tax, delivery, or installation. Electrical, structural, or venting work may be required. Contact us for a complete quote.
