Fireplace Xtrordinair • FPX ZC Gas Fireplaces
564 TRV 25K Deluxe GSR2
Propane ZC Fireplace

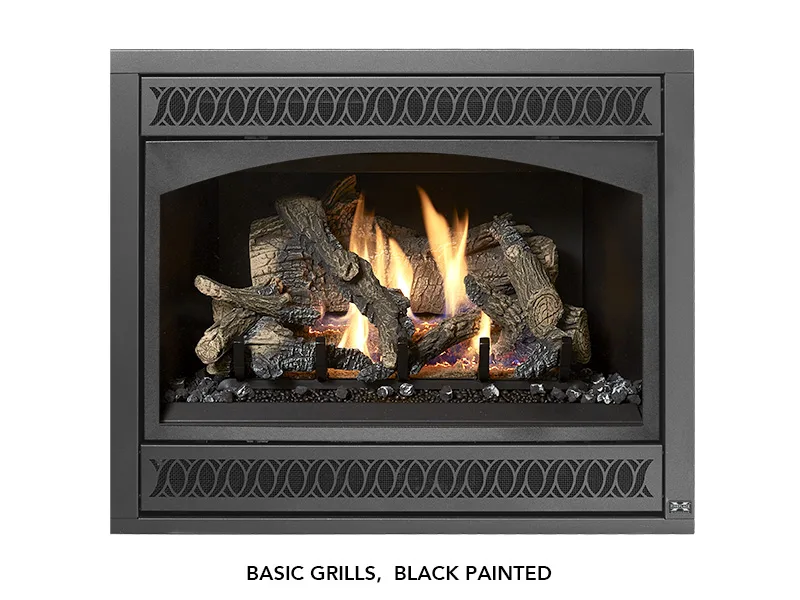

About the 564 TRV 25K Deluxe GSR2
The 564 TRV 25K delivers 25,000 BTU with top or rear vent flexibility. Includes Ember-Fyre II burner, GreenSmart 2 Remote, Comfort Control, accent lighting, 180 CFM fan, and tempered glass. Compatible with natural gas or propane.
Specifications
- Heating Area
- Up to 1,250 sq ft
- BTU Output
- 7,500 to 25,000 BTU/hr (NG) / 6,500 to 25,000 BTU/hr (LP)
- Efficiency
- 79.67% (NG) / 80.16% (LP), steady state
- Dimensions (H x W x D)
- 37 in x 37.25 in x 17.25 in
- Weight
- 155 lbs
- AFUE
- 68.10% (NG) / 72.10% (LP)
- Glass Viewing Area
- 479.8 sq in, tempered glass
- Convection Fan
- 180 CFM, standard
- Venting
- 8 in direct vent, top or rear; vertical terminations reduce to 6-5/8 in
- Minimum Framing
- 37.25 in H x 37.75 in W x 17.5 in D
- Hearth or Hearth Pad
- Not required
- Electrical
- 120 V, 60 Hz, 2 A supply (blower 1.5 A)
- Installation
- Bedroom and mobile home approved; straight or corner placement; covered outdoor installation allowed
Manuals & Documents
- Owner's Manual PDF, 8.4 MB
- Installation Manual PDF, 13 MB
- Spec Sheet PDF, 2.4 MB
- Brochure PDF, 4.8 MB
Manufacturer documents from Travis Industries. Each opens in a new tab.
Base price
$4,291
As configured
$5,211
Does not include tax, delivery, or installation. Electrical, structural, or venting work may be required. Contact us for a complete quote.
