Fireplace Xtrordinair • FPX ZC Gas Fireplaces
564 TRV 25K Clean Face Deluxe GSR2
Propane ZC Fireplace
About the 564 TRV 25K Clean Face Deluxe GSR2

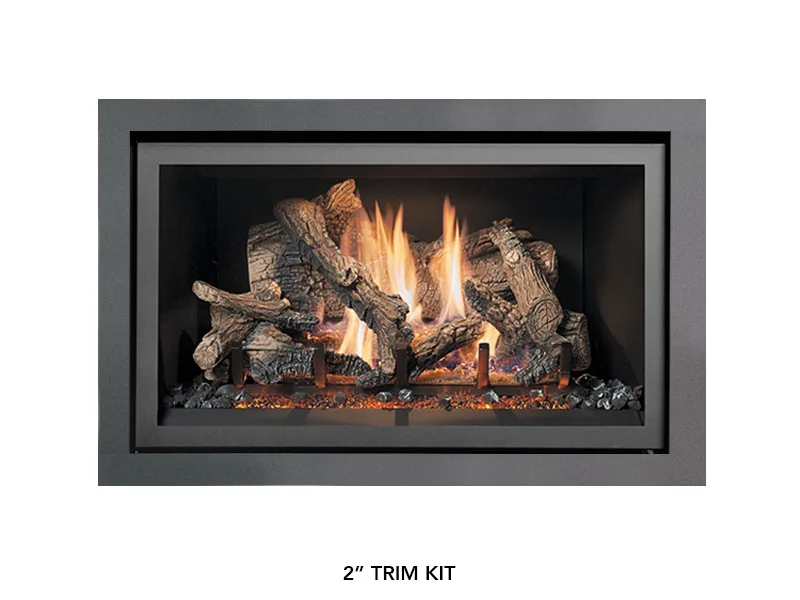

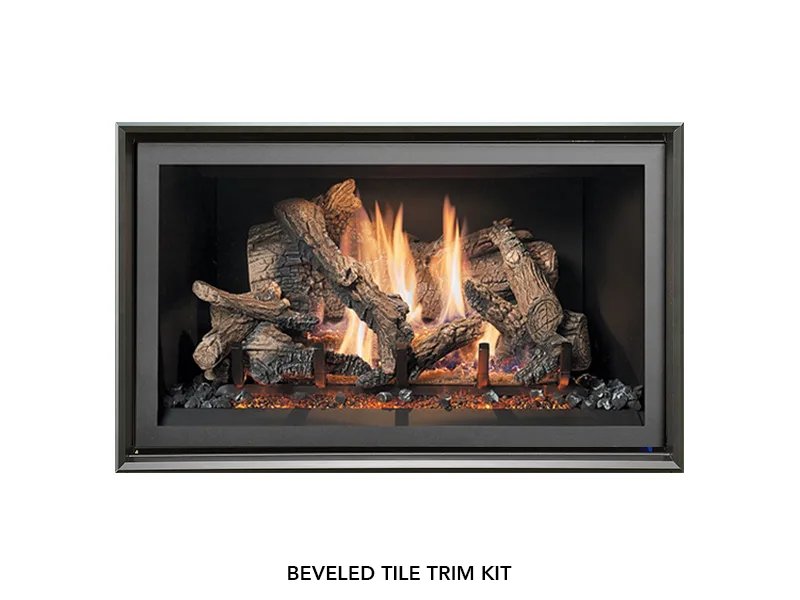

The 564 TRV 25K Clean Face provides a frameless, edge-to-edge fire view with 25,000 BTU and top or rear vent installation. Includes Ember-Fyre II burner, GreenSmart 2 Remote, accent lighting, 180 CFM fan, and tempered glass. Optional tile trim kits available for finishing.
Specifications
- Heating Area
- Up to 1,250 sq ft
- BTU Output
- 7,500 to 25,000 BTU/hr (NG) / 6,500 to 25,000 BTU/hr (LP)
- Efficiency
- 79.67% (NG) / 80.16% (LP), steady state
- Dimensions (H x W x D)
- 37 in x 38.25 in x 19.125 in
- Weight
- 155 lbs
- AFUE
- 68.10% (NG) / 72.10% (LP)
- Glass Viewing Area
- 479.8 sq in, tempered glass
- Convection Fan
- 180 CFM, standard
- Venting
- 8 in direct vent, top or rear; vertical terminations reduce to 6-5/8 in
- Minimum Framing
- 37.25 in H x 38.75 in W x 19.375 in D (18.875 in D for extended, tile-over install)
- Hearth or Hearth Pad
- Not required
- Electrical
- 120 V, 60 Hz, 2 A supply (blower 1.5 A)
- Installation
- Bedroom and mobile home approved; straight or corner placement; covered outdoor installation allowed
Manuals & Documents
- Owner's Manual PDF, 8.4 MB
- Installation Manual PDF, 13 MB
- Spec Sheet PDF, 3.3 MB
- Brochure PDF, 4.8 MB
Manufacturer documents from Travis Industries. Each opens in a new tab.
Base price
$4,794
As configured
$5,265
Does not include tax, delivery, or installation. Electrical, structural, or venting work may be required. Contact us for a complete quote.
