44 Elite NexGen-Hybrid

About the 44 Elite NexGen-Hybrid

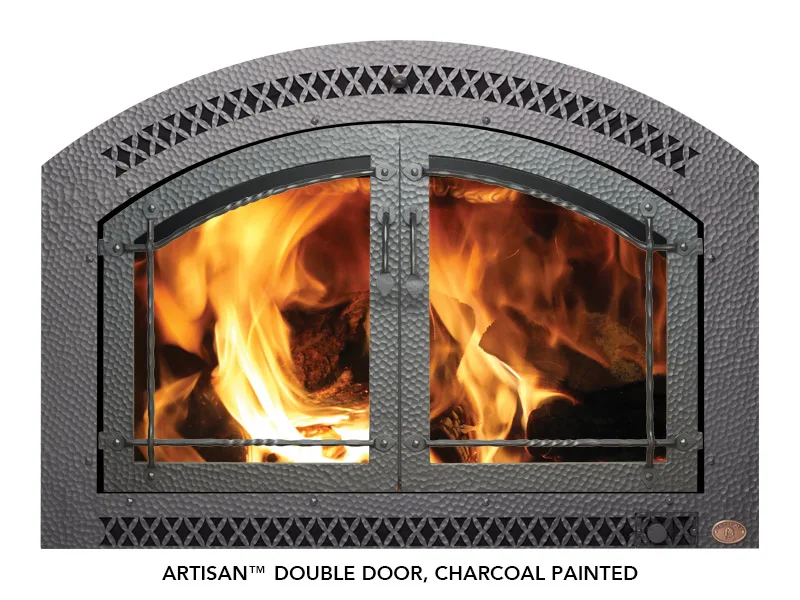

The 44 Elite NexGen-Hybrid is the largest wood-burning zero-clearance fireplace in the FPX lineup, delivering up to 54,510 BTU/hr in EPA testing for substantial heating. Catalytic NexGen-Hybrid technology achieves 1.1 grams per hour emissions while maintaining high output. Top-vent 8x12 configuration with included grate, baffle, arched setup face, 388 CFM blower, and catalytic sensor. Available with Black or hand-forged Artisan double doors and matching Arch faces.

Specifications

Heating Area

Up to 3,000 sq ft

BTU Output

12,016 to 54,510 BTU/hr (EPA test) / 12,500 to 78,000 BTU/hr (cord wood)

Efficiency

81.3% (HHV)

Emissions

1.1 g/hr

Max Log Length

32 in

Dimensions (H x W x D)

46 in x 49 in x 26.625 in

Weight

680 lbs

Glass Viewing Area

473.6 sq in, double doors, ceramic glass

Firebox

4.2 cu ft

Maximum Burn Time

Up to 14 hours

Convection Fan

388 CFM remote-mounted blower, standard

Flue

8 in x 12 in chimney (DuraVent 8 x 12 preferred), 15 to 35 ft system height; two 7 in cooling-air ducts to the outside required

Minimum Framing

50.5 in H x 50 in W x 26 in D (enclosure at least 81 in tall)

Hearth

1 in cement board (R 0.78), 20 in in front of the faceplate (18 in if raised 6.5 in) and 8 in past each side

Electrical

120 V, 60 Hz, 2 A circuit; blower draws 1.1 A (about 130 W) on high

Installation

Straight or corner placement; raised or floor; internal or external chase; not approved for mobile homes

Manuals & Documents

• Owner's Manual PDF, 5.2 MB
• Installation Manual PDF, 13 MB
• Spec Sheet PDF, 3.0 MB
• Brochure PDF, 1.8 MB

Manufacturer documents from Travis Industries. Each opens in a new tab.
