42 Apex NexGen-Hybrid

About the 42 Apex NexGen-Hybrid

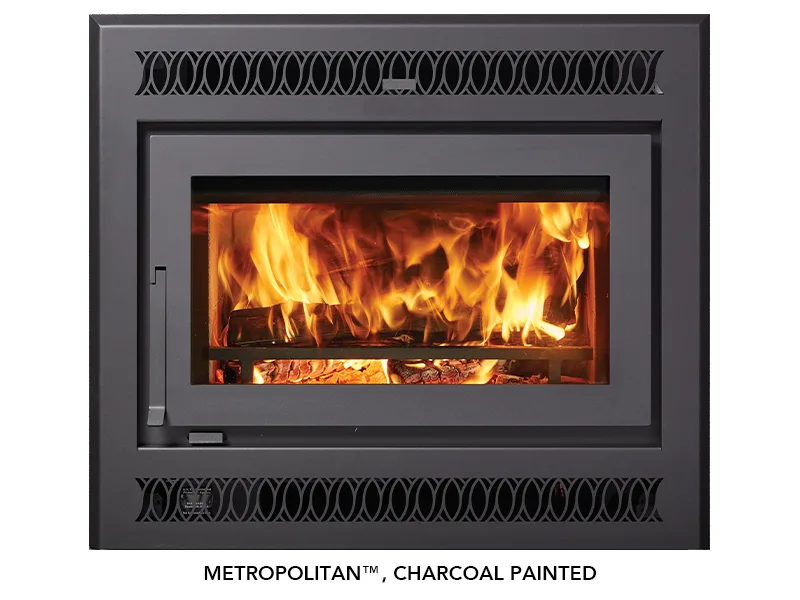

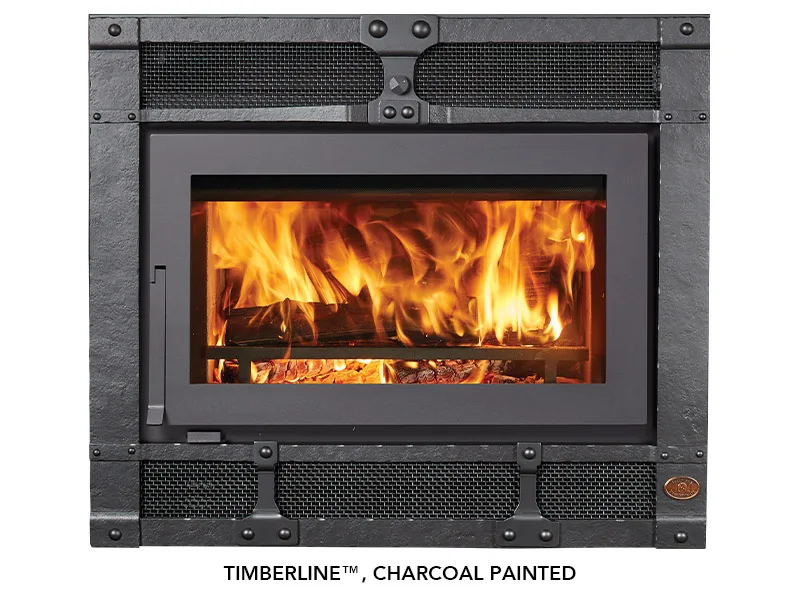

The 42 Apex NexGen-Hybrid is the flagship wood-burning zero-clearance fireplace from Fireplace Xtrordinair. Featuring a 3.5 cubic foot firebox that accepts 24-inch logs, it delivers up to 40,275 BTU/hr in EPA testing with catalytic top-vent technology. Includes a charcoal door, 400 CFM blower, door tool, baffle, catalytic sensor, and 3-inch outside air duct. Meets EPA 2020 NSPS emissions standards at just 1.2 grams per hour. Choose from Metropolitan, Universal, or the premium Timberline face.

Specifications

Heating Area

Up to 2,500 sq ft

BTU Output

7,660 to 40,275 BTU/hr (EPA test) / 13,500 to 50,000 BTU/hr (cord wood)

Efficiency

77.2% (HHV)

Emissions

1.2 g/hr

Max Log Length

24 in

Dimensions (H x W x D)

47.25 in x 42 in x 22.875 in

Weight

670 lbs

Glass Viewing Area

328.7 sq in, ceramic glass

Firebox

3.5 cu ft

Maximum Burn Time

Up to 14 hours

Flue

8 in x 12 in Travis air-cooled chimney (with 6 in cooling duct kit) or 7 in insulated chimney, 15 to 35 ft system height

Minimum Framing

81 in H x 42 in W x 23 in D

Hearth

1 in cement board (R 1.00), 20 in in front of the faceplate (18 in if raised 6 in or more) and 8 in past each side of the door opening (44 in wide)

Electrical

120 V, 60 Hz, 10 A circuit (2 A blower, 8 A optional igniter)

Installation

Straight or corner placement; raised or floor; internal or external chase; not approved for mobile homes

Manuals & Documents

• Owner's Manual PDF, 3.8 MB
• Installation Manual PDF, 8.1 MB
• Spec Sheet PDF, 2.0 MB
• Brochure PDF, 1.8 MB

Manufacturer documents from Travis Industries. Each opens in a new tab.
