36 Elite NexGen-Hybrid

About the 36 Elite NexGen-Hybrid

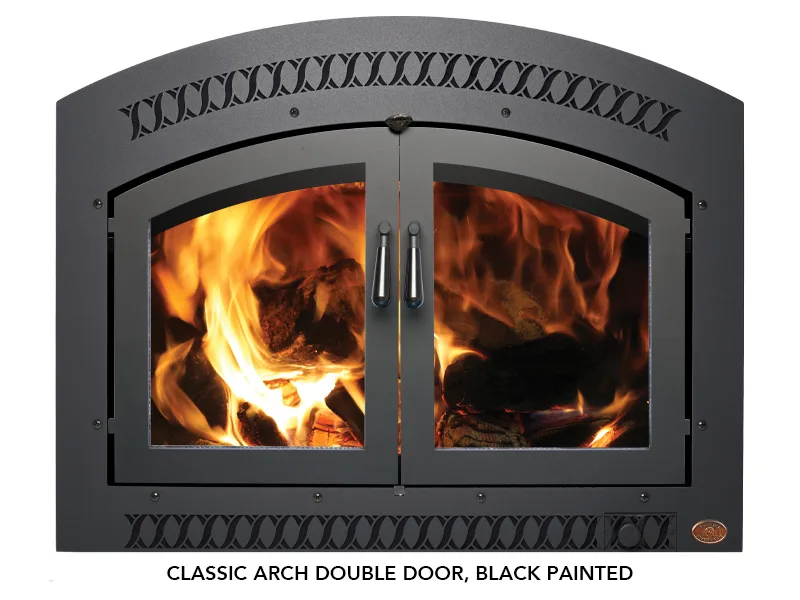

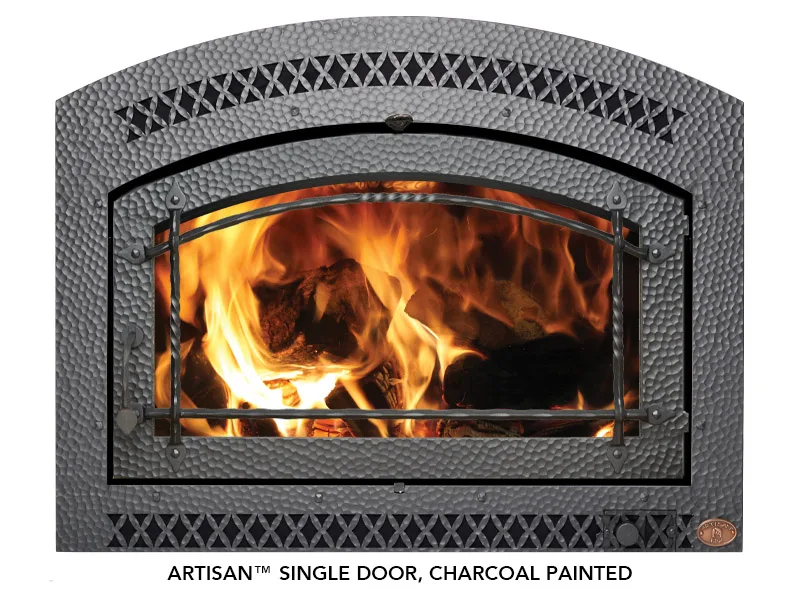

The 36 Elite NexGen-Hybrid is a high-efficiency zero-clearance wood fireplace with top-vent 8x12 configuration. Featuring catalytic NexGen-Hybrid technology, it achieves an industry-leading 0.6 grams per hour emissions rating while delivering up to 47,514 BTU/hr in EPA testing. Includes grate, baffle, arched setup face, 388 CFM blower, and catalytic sensor. Choose from double or single doors in black or hand-forged Artisan finish, paired with an Arch Black or Arch Artisan face.

Specifications

Heating Area

Up to 2,500 sq ft

BTU Output

10,733 to 47,514 BTU/hr (EPA test) / 17,500 to 70,000 BTU/hr (cord wood)

Efficiency

79.5% (HHV)

Emissions

0.6 g/hr

Max Log Length

24 in

Dimensions (H x W x D)

41 in x 42 in x 26.5 in

Glass Viewing Area

300.6 sq in (double door) or 319.7 sq in (single door), ceramic glass

Firebox

3.13 cu ft

Maximum Burn Time

Up to 12 hours

Convection Fan

388 CFM remote-mounted blower, standard

Flue

8 in x 12 in chimney (DuraVent 8 x 12 preferred), 15 to 35 ft system height; two 6 in cooling-air ducts to the outside required

Minimum Framing

45.5 in H x 43 in W x 26 in D (enclosure at least 81 in tall)

Hearth

1 in cement board (R 0.78), 20 in in front of the faceplate (18 in if raised 6.5 in) and 8 in past each side

Electrical

120 V, 60 Hz, 2 A circuit; blower draws 1.1 A (about 130 W) on high

Installation

Straight or corner placement; raised or floor; internal or external chase; not approved for mobile homes

Manuals & Documents

• Owner's Manual PDF, 5.6 MB
• Installation Manual PDF, 15 MB
• Spec Sheet PDF, 1.7 MB
• Brochure PDF, 1.8 MB

Manufacturer documents from Travis Industries. Each opens in a new tab.
